Kydex is a high-performance thermoplastic. It’s a top choice for protective gear—like knife and tool covers. It resists scratches, keeps water out, and can be shaped to fit. Getting the application right makes the material work its best. It makes a cover that fits well and holds up over time.
Choose a Kydex sheet of appropriate thickness – typically 0.8-1.5 mm. Cut to size.Leave 5-10mm extra for processing. Also, get release agent (like silicone oil), a heat source (heat gun or oven), a shaping mold (wood or metal), and grinding tools.
Put the Kydex sheet in an oven. Set it to 160-180℃. Leave it for 3-5 minutes. Wait until it gets soft and easy to bend. Take it out. Cover the mold surface fast. Press it down with a cotton cloth to make it fit. Focus on shaping the edges and grooves. Make sure it matches the item’s shape exactly. Wear heat-resistant gloves here. You don’t want to get burned.
After maintaining the pressed configuration for 30 seconds, cold water is sprayed onto the material to expedite the cooling process, thereby fixing the formed shape. In cases where curvature adjustments are required, localized reheating using a heat gun may be employed for fine-tuning. It is crucial that no single heating session lasts longer than 10 seconds, as prolonged heating may cause degradation of the material.
Excess edge material is excised using a utility knife. After this, start with rough grinding. Use 80-grit sandpaper to take off the big extra pieces. Then do the final fine grind with 400-grit sandpaper. This fine grinding gets rid of burrs. It also fixes the edge curve.
| Operation Link | Key Parameters | Precautions |
| Heating Temperature | 160-180℃ | Excessively high temperature will cause the material to discolor and performance to degrade. |
| Pressing Time | 30 seconds continuously before cooling | Apply uniform pressure to avoid local depressions. |
| Sanding Grit | 80 grit → 400 grit | Finally, polish with a cotton cloth to enhance surface smoothness. |

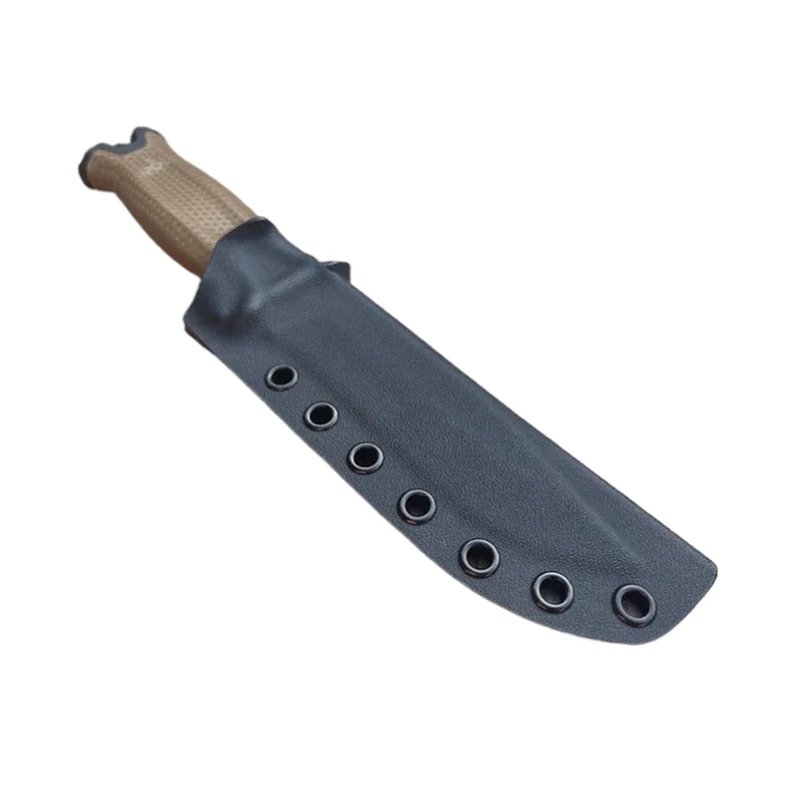

Sheath Kydex is well-suited for the production of protective sheaths for outdoor knives, tactical equipment, medical devices, and similar items. According to data provided by an outdoor equipment manufacturer, the service life of knife sheaths fabricated from this material exceeds five times that of traditional leather sheaths. Furthermore, its performance remains stable across an environmental temperature range of -40℃ to 80℃.
Mastery of the aforementioned methods enables the material to meet both mass production requirements and the demands of handcrafted customization.Beginners should start with simple flat designs. When you get good at it, try making things with tricky curves and hollow parts. Taking this step-by-step way lets you use Sheath Kydex's ability to be customized to the fullest.
-
